Float Switch for Bilge Pump Rocker Switch Carling Style Green Led Illuminated Waterproof Marine Switch

  • 20A 12VDC/10A 24VDC
  • Circuit:(ON)-OFF-(ON)/DPDT/6P/0 Light
  • Waterproof Design IP67
  • Size of Drill:37.2*21.2mm
  • Used widely
Availability:
Quantity:
Inquire Add to Basket

  • KR2-17-223

  • KARA

  • 8536500090

Product Attributes

Model No. KR2-17-223 Brand KARA
Usage Electrical Appliance Standard Standard
Lamp Without Lamp Color Black
Certification RoHS Condition New
Dimenstion 37.4*37 Certificate CQC


Supply Ability & Additional Information

Packaging CARTON Productivity 500000PCS/MONTH
Transportation Ocean,Land,Air Place of Origin NINGBO,CHINA
Supply Ability 500000PCS/MONTH Certificate ROHS,CE,CQC
HS Code 85365000 Payment Type L/C,T/T,Paypal,Western Union
Incoterm FOB,CIF


Packaging & Delivery
Selling Units Piece/Pieces Package Type CARTON



Specification

Rating 16A 250VAC;20A
Operating Temperature -40~85ºC
Contact Resistance 50mΩ Max
Insulation Resistance 500MΩ Min
Electrical Life 10000cycles
Applicable Standard IEC61058-1


Material list

Contact Leg Brass T=0.8mm
Contact Silver alloy
Terminals Brass T=0.8mm
Case PA66

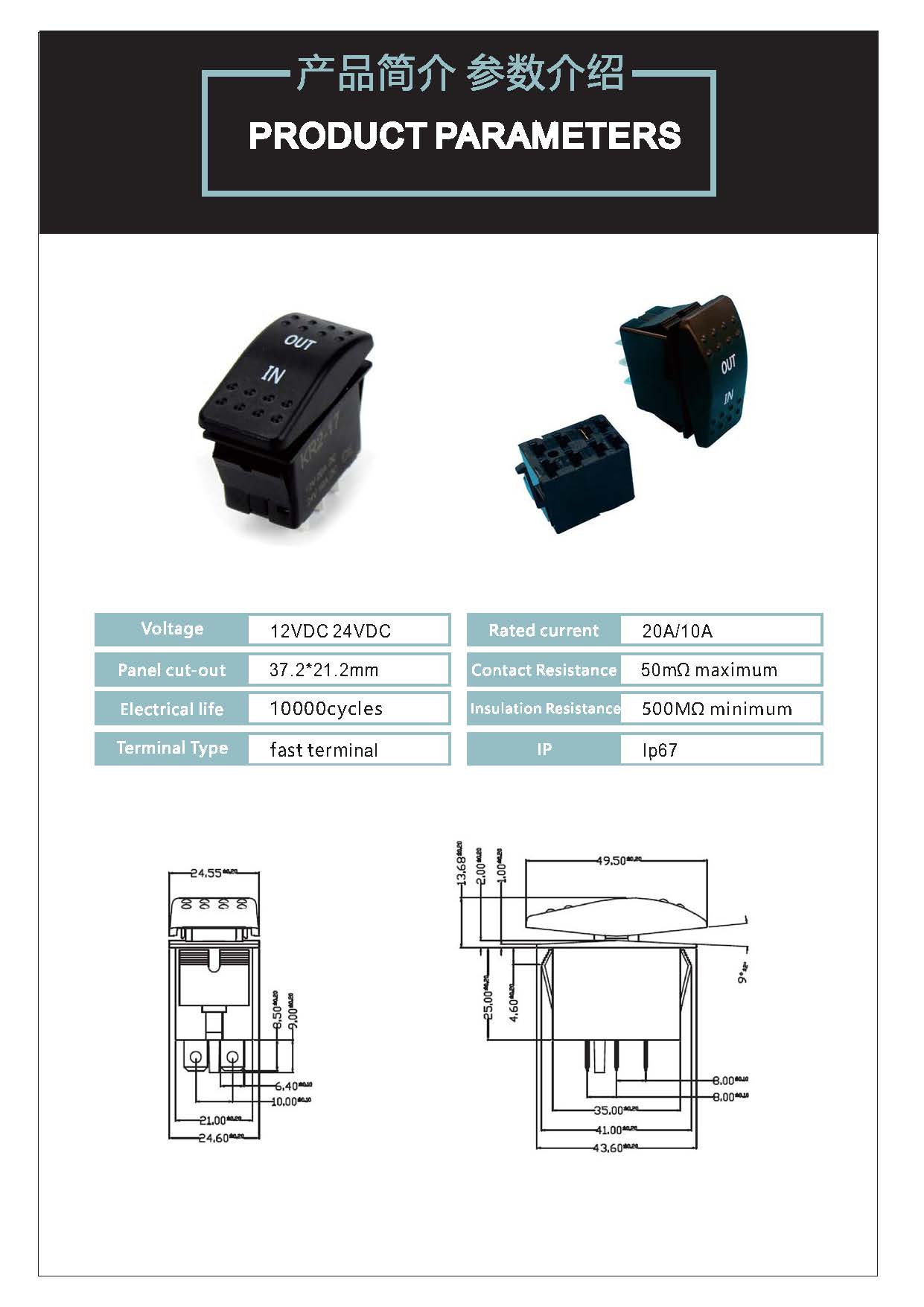

 Drawing:

KR2-17-223

2
5


6
