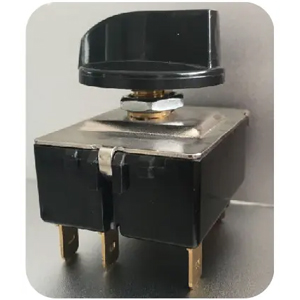

Rotary Switch 4 Position for Electric Brower

  • Four positions
  • 16A 250VAC
  • Used widely in the area of HEATER/BROWER
  • KD3 Speed Rotary Switch for Fan-X2-4
Availability:
Quantity:
  • KD-X2-4

  • KARA

  • 8536500090

Product Attributes

Model No. KD-X2-4 Brand KARA
Usage Electrical Appliance Standard Standard
Lamp Without Lamp Color Black
Certification RoHS Condition New
Functions 4 Position


Supply Ability & Additional Information

Packaging CARTON Productivity 500000PCS/MONTH
Transportation Ocean,Land,Air Place of Origin NINGBO,CHINA
Supply Ability 500000PCS/MONTH Certificate CE
HS Code 85365000 Payment Type T/T,D/P
Incoterm FOB,CIF


Packaging & Delivery
Selling Units Piece/Pieces Package Type CARTON



Specification

Rating 16A 250VAC
Operating Temperature -25~85ºC
Contact Resistance 30mΩ Max
Insulation Resistance 100mΩ Min
Electrical Life 10000cycles
Applicable Standard IEC61058-1


Material list

Contact Leg Brass T=0.8mm
Contact Silver alloy
Terminals Brass T=0.8mm
Case PA66

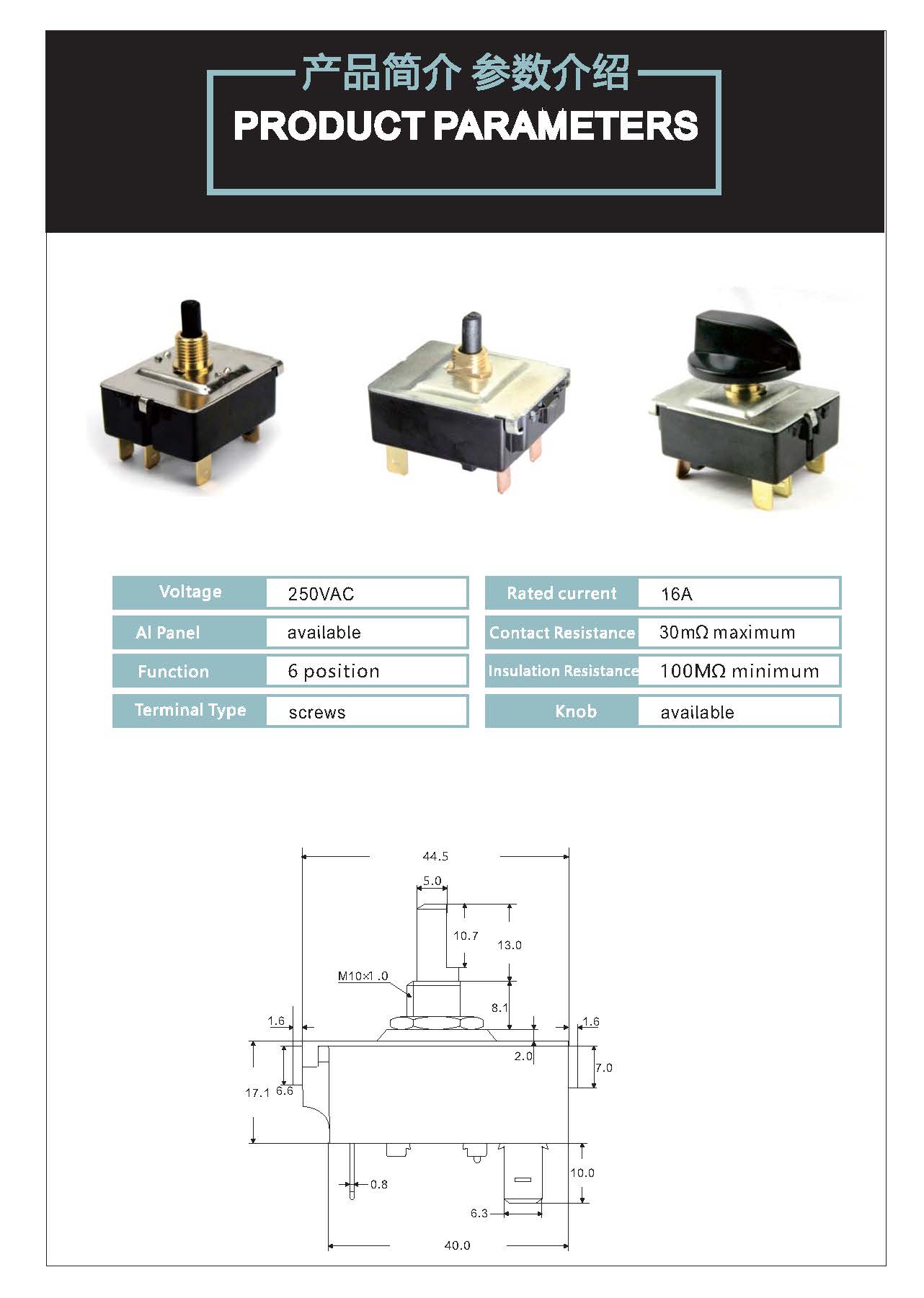

Drawing

KD-X2-4
