KR1-1-F4
KARA
8536500090
Product Attributes
| Model No. | KR1-1-101F4 | Brand | KARA |
| Usage | Electrical Appliance | Standard | Standard |
| Lamp | Without Lamp | Color | Black |
| Certification | RoHS | Condition | New |
| Dimenstion | 19*13 |
Supply Ability & Additional Information
| Packaging | CARTON | Productivity | 500000PCS/MONTH |
| Transportation | Ocean,Land,Air | Place of Origin | NINGBO,CHINA |
| Supply Ability | 500000PCS/MONTH | Certificate | ROHS,TUV,CE |
| HS Code | 85365000 | Payment Type | T/T,D/P |
| Incoterm | FOB,CIF |
| Selling Units | Piece/Pieces | Package Type | CARTON |
24v Rocker Switch Without Light
Rocker Switch IP65
Rocker Leviton Switch With Light
Material should be FR Grade
Part should be free from surface defects
The part should not contain prohibited substance (Pb,Cr,Cd,Hg,PBB,PBDE) and details as per TUV standards
[C] marked dimensions.If any should be carefully handled as are assembly dimensions.
Specification
| Rating | 6A 250VAC |
| Operating Temperature | -25~85ºC |
| Contact Resistance | 30mΩ Max |
| Insulation Resistance | 100MΩ Min |
| Electrical Life | 10000cycles |
| Applicable Standard | IEC61058-1 |
Material list
| Contact Leg | Brass T=0.8mm |
| Contact | Silver alloy |
| Terminals | Brass T=0.8mm |
| Case | PA66 |

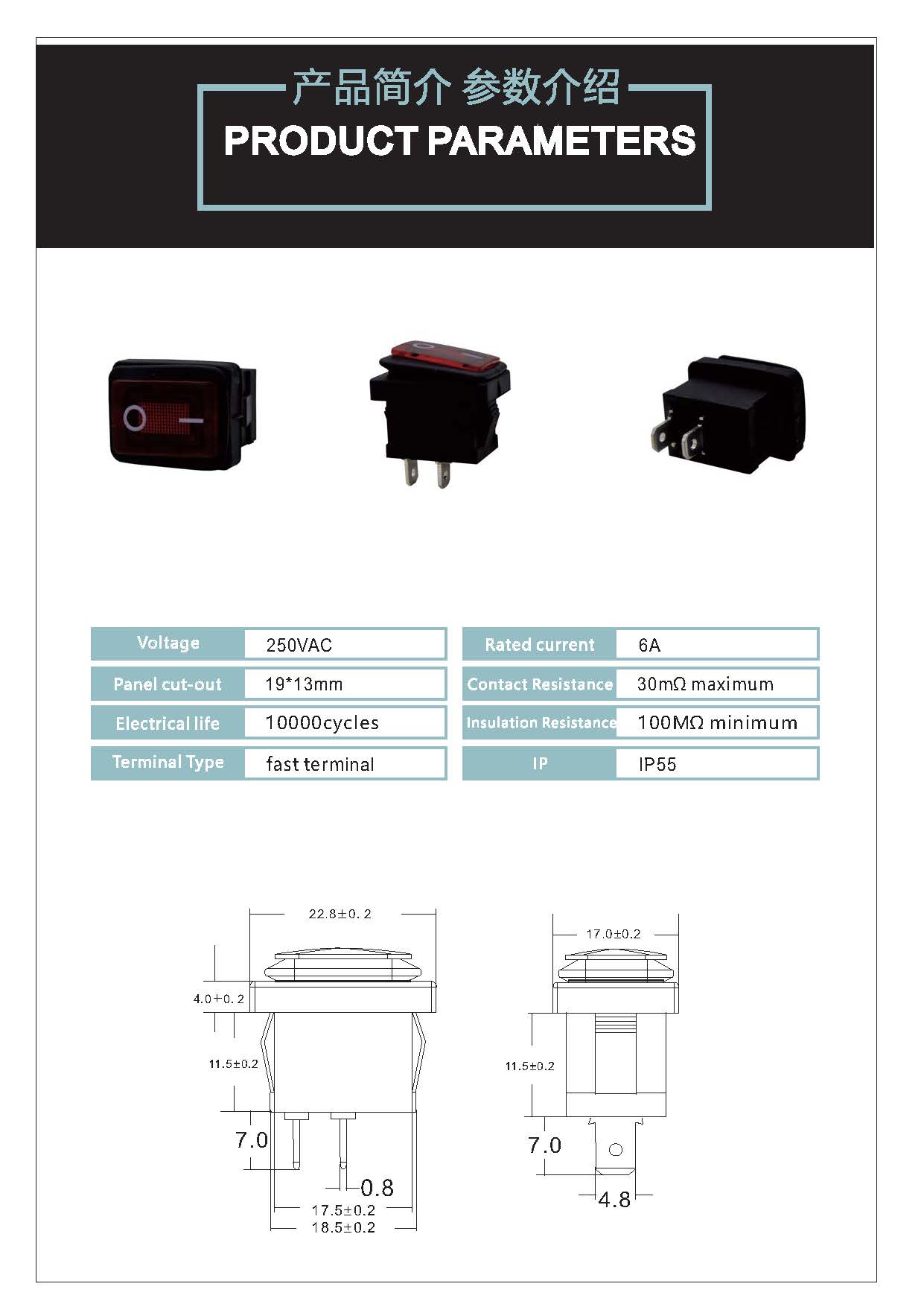

Drawing

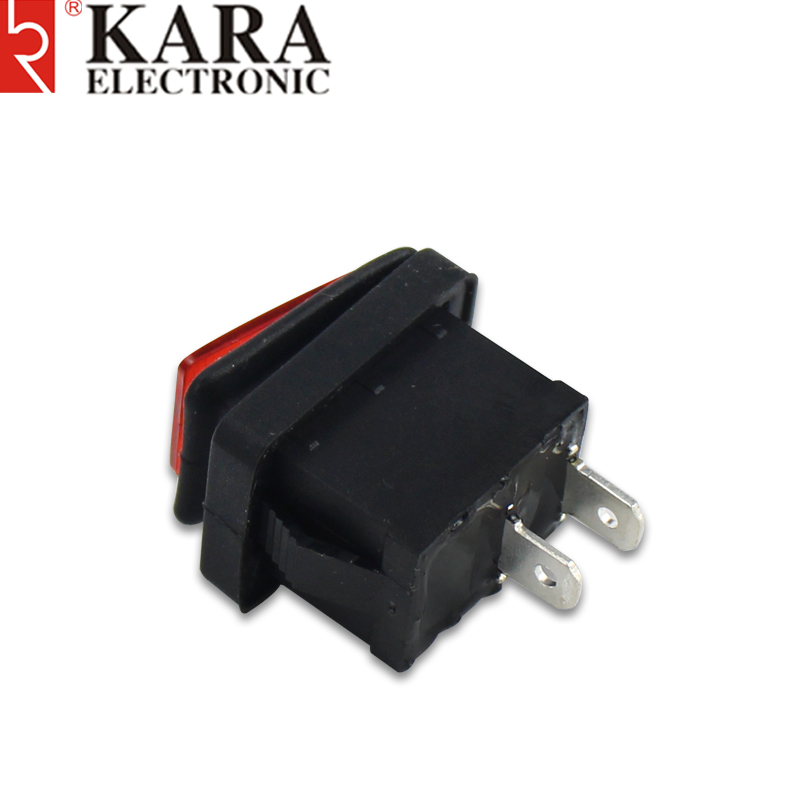

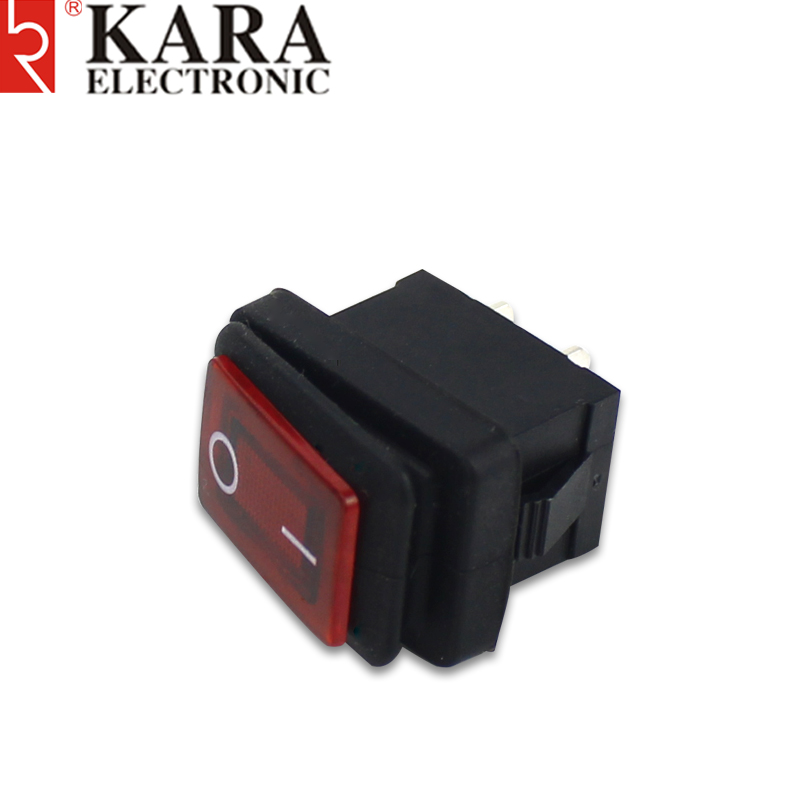

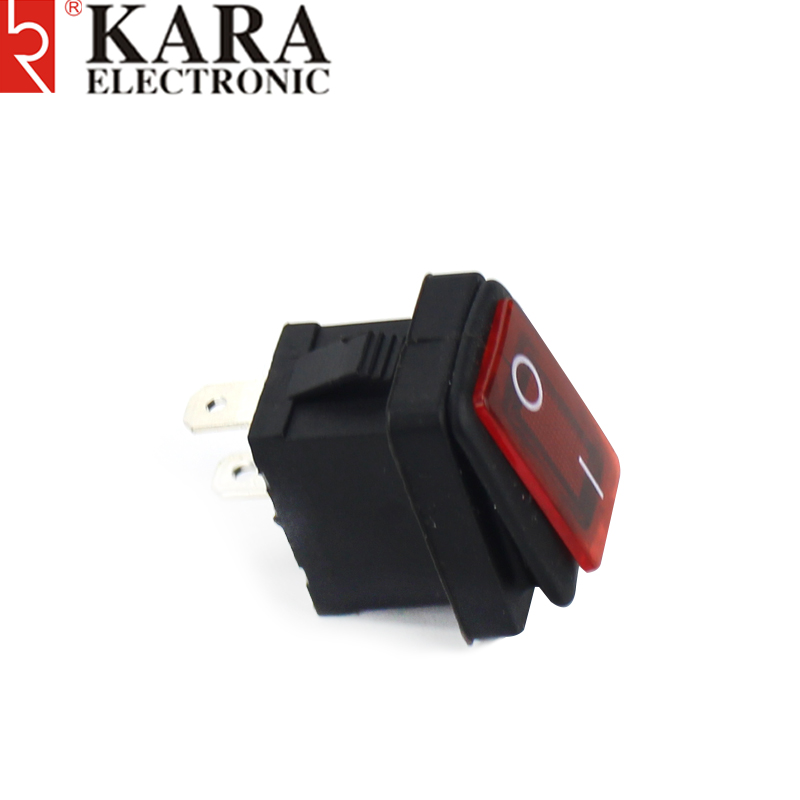

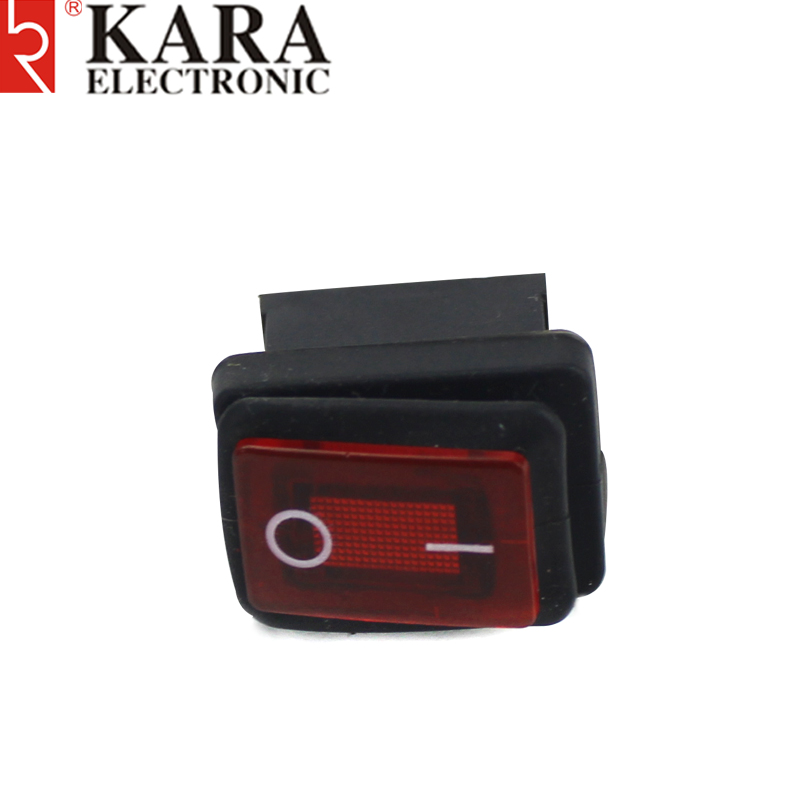

Pictures
